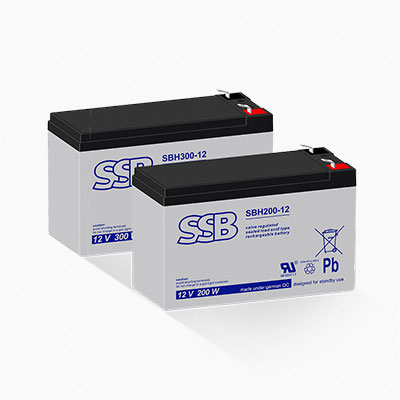

SBH (6–9 years according to EUROBAT)
The SBH series perfectly complements the SB series in glass-fi bre mat technology, which has years of market approval. In addition to the high discharge current, the voltage level during discharge is crucial for this application. The SBH series fulfi ls both criteria and is therefore the best choice for solid high-current applications, especially in UPS use. It offers excellent discharge properties and a design life of 6 to 9 years according to EUROBAT.
Applications
- UPS installations
- DC power supplies for short-term applications
- Emergency lighting systems
- Medical applications
- etc.

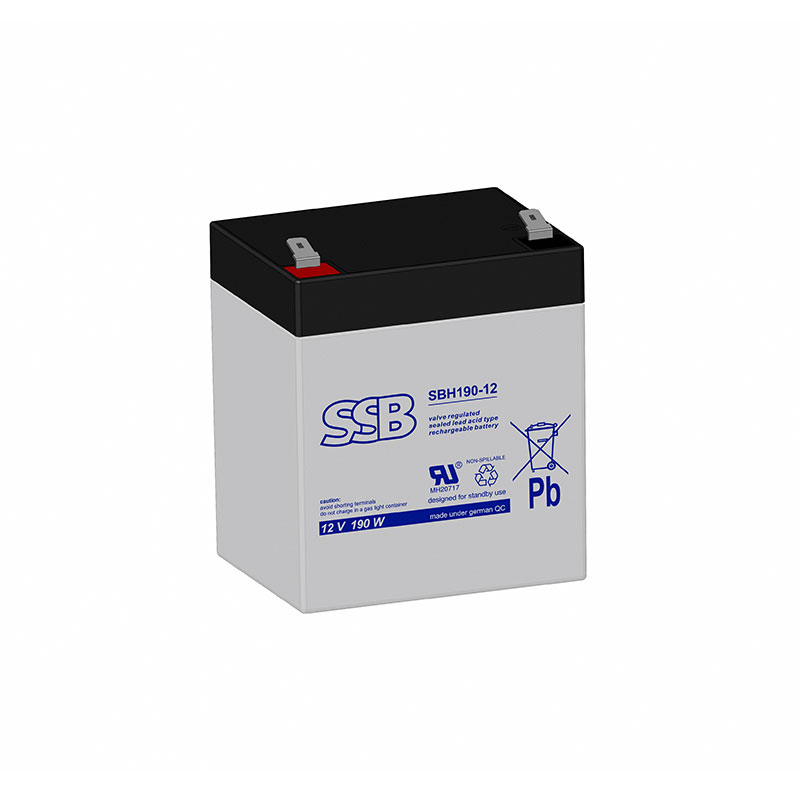

SSB Battery SBH190-12
AGM battery, 12 V 5.1 Ah (C10), High Rate Series (high current capacity, 188 W/10 min., 9.6 V/Block), sealed, maintenance free, 6-9 years, measurements: 90 x 70 x 107 mm, T2 (6.3 mm) connector, weight: 1.55 kg
Item Number:
SSB108029
Description:
AGM battery, 12 V 5.1 Ah (C10), High Rate Series (high current capacity, 188 W/10 min., 9.6 V/Block), sealed, maintenance free, 6-9 years, measurements: 90 x 70 x 107 mm, T2 (6.3 mm) connector, weight: 1.55 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBH190-12
Voltage (V):
12
Capacitance (mAh):
5100
Length (mm):
90
Width / Diameter (mm):
70
Height (mm):
107
Gross weight (kg):
1.7

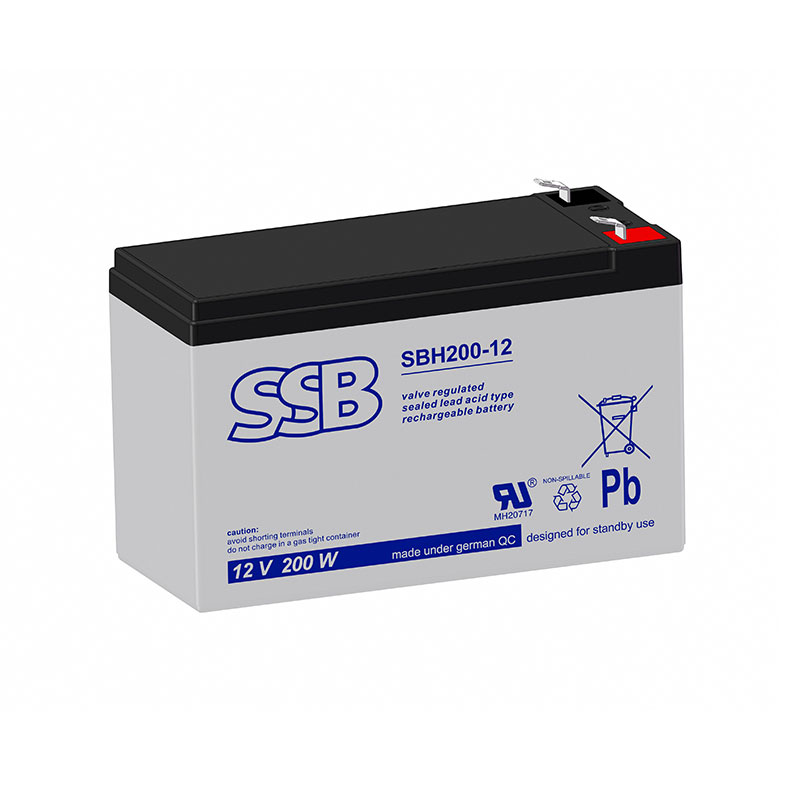

SSB Battery SBH200-12
AGM battery, 12 V 4.6 Ah (C10), High Rate Series (high current capacity, 170 W/10 min., 9,6 V/Block), sealed, maintenance free, 6-9 years, measurements: 151 x 50 x 101 mm, T1 (4.8 mm) and T2 (6.3 mm) connector weight: 1.6 kg
Item Number:
SSB108018
Description:
AGM battery, 12 V 4.6 Ah (C10), High Rate Series (high current capacity, 170 W/10 min., 9,6 V/Block), sealed, maintenance free, 6-9 years, measurements: 151 x 50 x 101 mm, T1 (4.8 mm) and T2 (6.3 mm) connector weight: 1.6 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBH200-12
Voltage (V):
12
Capacitance (mAh):
4600
Length (mm):
151
Width / Diameter (mm):
50
Height (mm):
101
Gross weight (kg):
1.9
SSB Battery SBH300-12
AGM battery, 12 V 277 W/10 min. high power capacity, sealed, maintenance free, 6-9 years, measurements: 151 x 65 x 100 mm, T2 (6.3 mm) connector, weight: 2.6 kg
Item Number:
SSB108008
Description:
AGM battery, 12 V 277 W/10 min. high power capacity, sealed, maintenance free, 6-9 years, measurements: 151 x 65 x 100 mm, T2 (6.3 mm) connector, weight: 2.6 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBH300-12
Voltage (V):
12
Capacitance (mAh):
8500
Length (mm):
151
Width / Diameter (mm):
65
Height (mm):
100
Gross weight (kg):
2.6625
