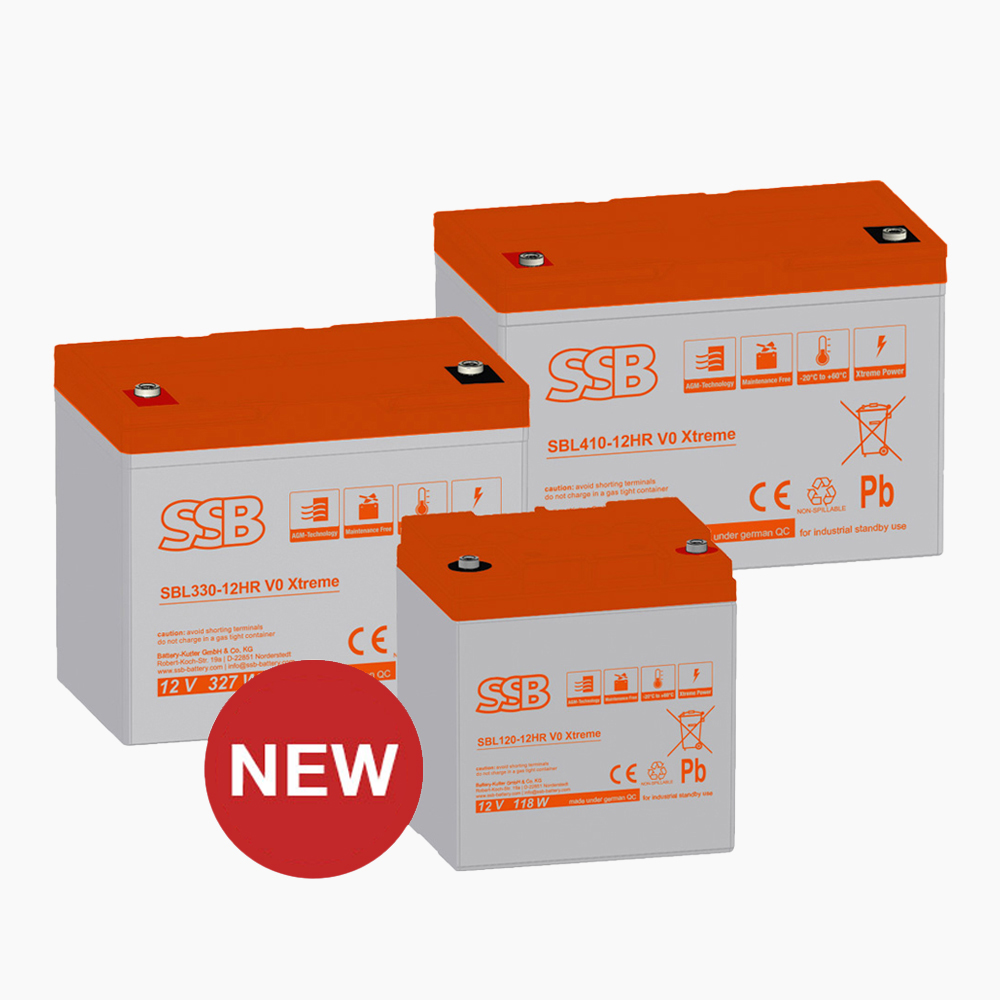

SBL-HR Xtreme(>12 years according to EUROBAT)
The SSB Battery SBL-HR Xtreme series stands for sealed and absolutely maintenance-free lead-acid batteries, also known as AGM batteries (Absorbent Glass Mat). HR stands for „High Rate“, i.e. for a high discharge current within a very short time. The Xtreme feature means extremely high discharge rates and
30% more high-current power at up to 35% less space requirement. *
*Â Compared to SSB Battery SBL-HR Series
Applications
- Emergency power systems
- UPS systems
- CPS systems
- Emergency Generator with Diesel
- etc.

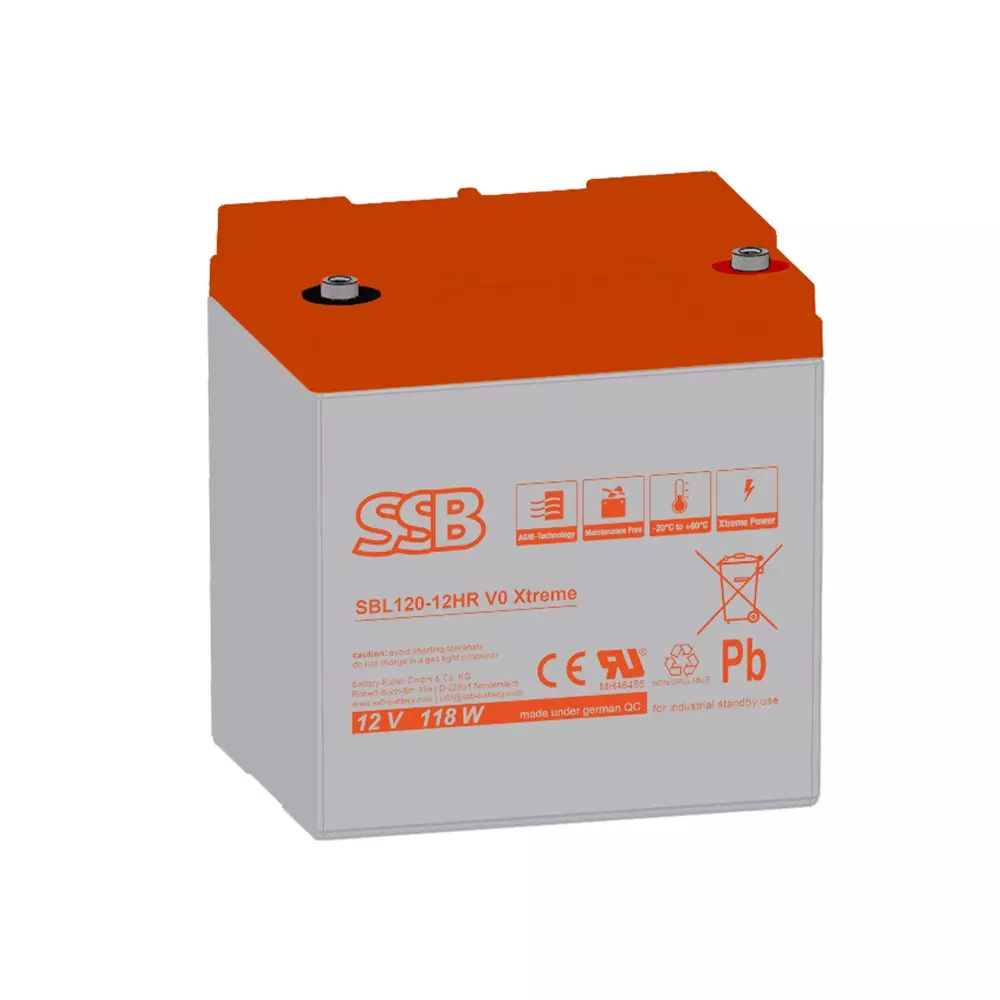

SSB Battery SBL120-12HR V0 Xtreme
AGM battery, 12 V 26 Ah (C10), High Rate Xtreme Series (high current capacity, 118 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 165 x 125 x 175 mm, M5 connector, weight: 9,6 kg
Item Number:
SSB2037872
Description:
AGM battery, 12 V 26 Ah (C10), High Rate Xtreme Series (high current capacity, 118 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 165 x 125 x 175 mm, M5 connector, weight: 9,6 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL120-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
26000
Length (mm):
165
Width / Diameter (mm):
125
Height (mm):
175
Gross weight (kg):
10

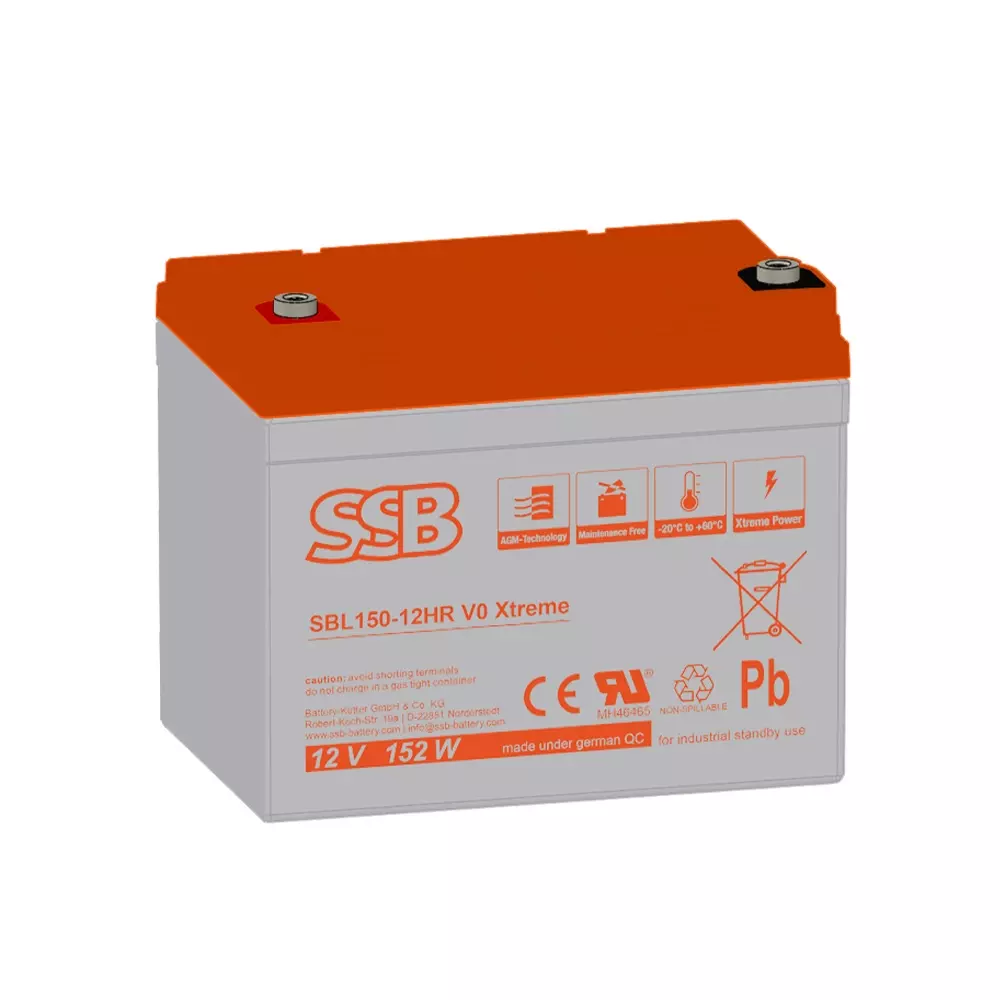

SSB Battery SBL150-12HR V0 Xtreme
AGM battery, 12 V 33 Ah (C10), High Rate Xtreme Series (high current capacity, 152 W/15 min., 1.6 V/cell) sealed, maintenance free, >12 years, measurements: 195 x 130 x 168 mm, M6 connector, weight: 11.5 kg
Item Number:
SSB2037873
Description:
AGM battery, 12 V 33 Ah (C10), High Rate Xtreme Series (high current capacity, 152 W/15 min., 1.6 V/cell) sealed, maintenance free, >12 years, measurements: 195 x 130 x 168 mm, M6 connector, weight: 11.5 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL150-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
33000
Length (mm):
195
Width / Diameter (mm):
130
Height (mm):
168
Gross weight (kg):
11,9

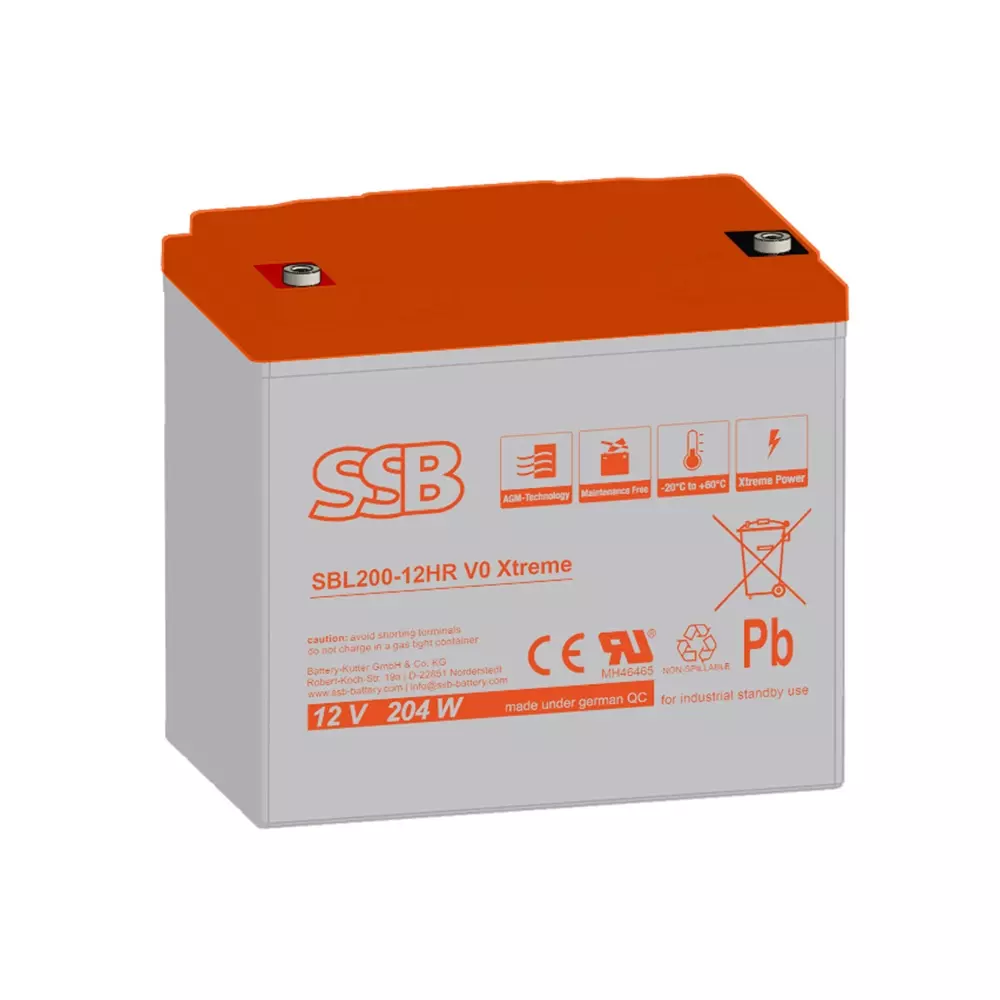

SSB Battery SBL200-12HR V0 Xtreme
AGM battery, 12 V 55 Ah (C10), High Rate Xtreme Series (high current capacity, 204 W/15 min., 1.6 V/cell) sealed, maintenance free, >12 years, measurements: 229 x 138 x 208 mm, M6 connector, weight: 17 kg
Item Number:
SSB2037874
Description:
AGM battery, 12 V 55 Ah (C10), High Rate Xtreme Series (high current capacity, 204 W/15 min., 1.6 V/cell) sealed, maintenance free, >12 years, measurements: 229 x 138 x 208 mm, M6 connector, weight: 17 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL200-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
55000
Length (mm):
229
Width / Diameter (mm):
138
Height (mm):
213
Gross weight (kg):
17,4

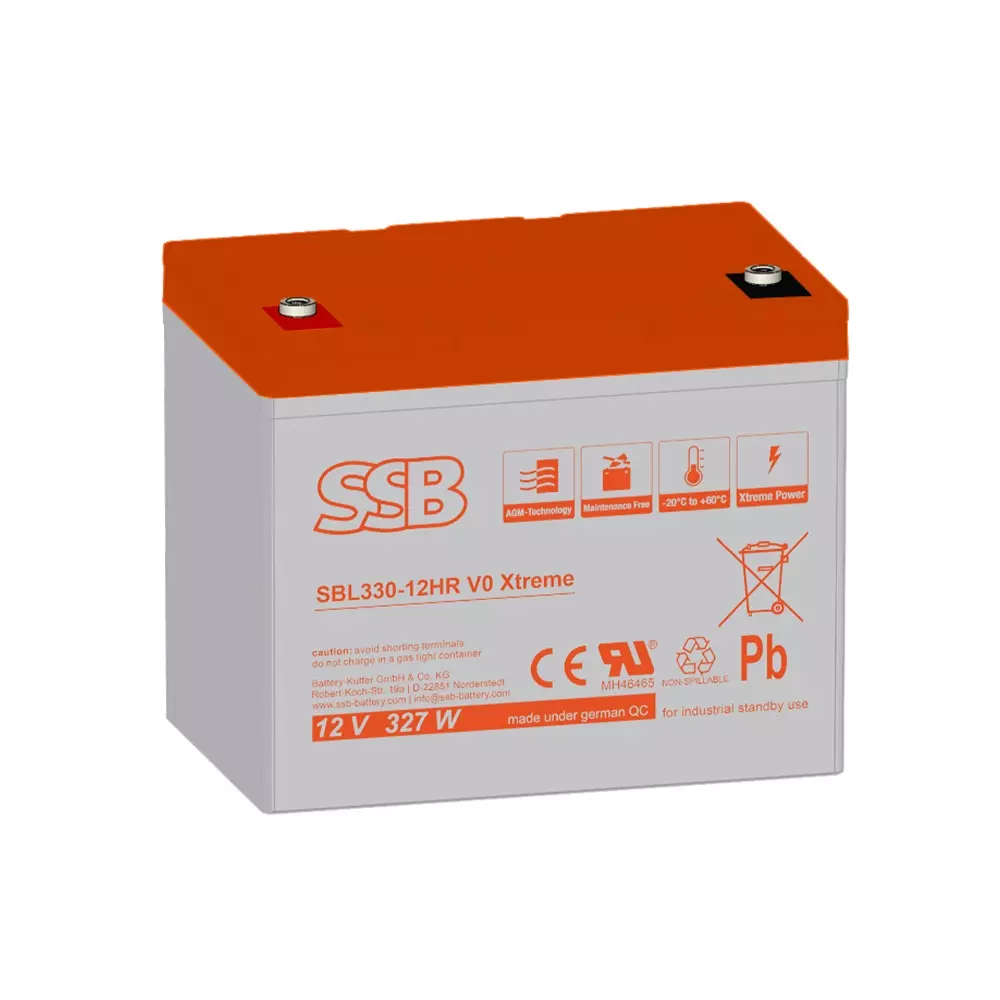

SSB Battery SBL330-12HR V0 Xtreme
AGM battery, 12 V 75 Ah (C10), High Rate Xtreme Series (high current capacity, 327 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 258 x 166 x 215 mm, M8 connector, weight: 24,5 kg
Item Number:
SSB2037875
Description:
AGM battery, 12 V 75 Ah (C10), High Rate Xtreme Series (high current capacity, 327 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 258 x 166 x 215 mm, M8 connector, weight: 24,5 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL330-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
75000
Length (mm):
258
Width / Diameter (mm):
166
Height (mm):
215
Gross weight (kg):
25

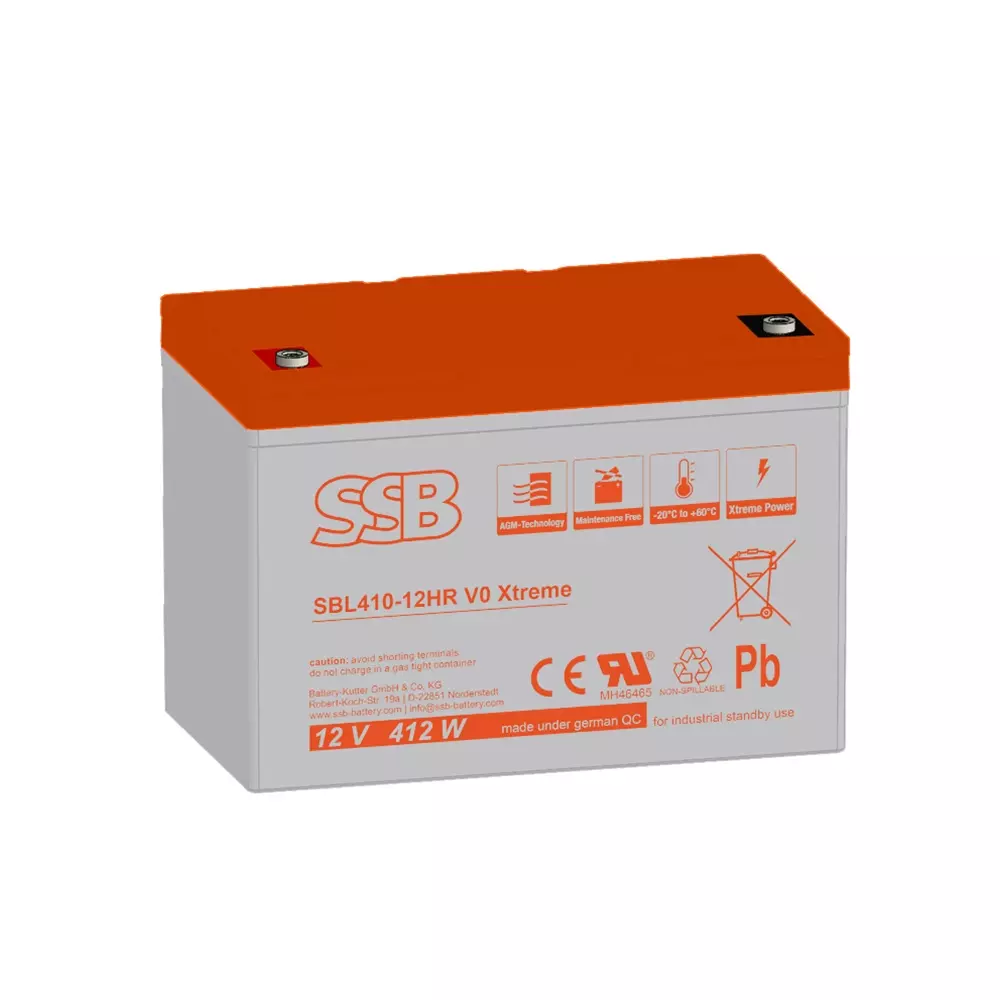

SSB Battery SBL410-12HR V0 Xtreme
Blei-Vlies-Akku (AGM), 12 V 90 Ah (C10), High Rate Xtreme Serie (hochstromfähig, 412 W/15 min., 1,6 V/Zelle), geschlossen, wartungsfrei, >12 Jahre, Maße: 306 x 168 x 215 mm, Anschl. M8, Gewicht: 29,2 kg
Item Number:
SSB2037876
Description:
Blei-Vlies-Akku (AGM), 12 V 90 Ah (C10), High Rate Xtreme Serie (hochstromfähig, 412 W/15 min., 1,6 V/Zelle), geschlossen, wartungsfrei, >12 Jahre, Maße: 306 x 168 x 215 mm, Anschl. M8, Gewicht: 29,2 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL410-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
90000
Length (mm):
306
Width / Diameter (mm):
168
Height (mm):
215
Gross weight (kg):
29,7

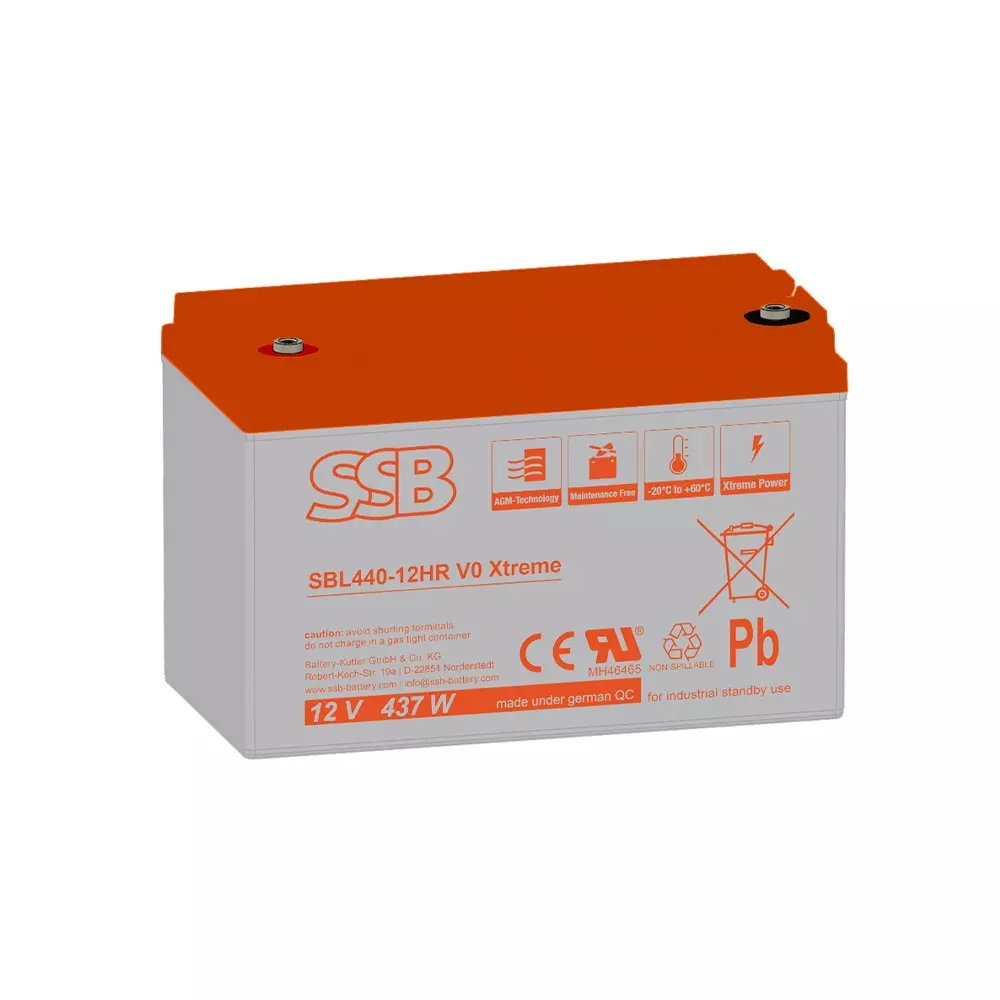

SSB Battery SBL440-12HR V0 Xtreme
AGM battery, 12 V 100 Ah (C10), High Rate Xtreme Series (high current capacity, 437 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 330 x 172 x 220 mm, M8 connector, weight: 32,3 kg
Item Number:
SSB2037877
Description:
AGM battery, 12 V 100 Ah (C10), High Rate Xtreme Series (high current capacity, 437 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 330 x 172 x 220 mm, M8 connector, weight: 32,3 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL440-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
100000
Length (mm):
330
Width / Diameter (mm):
172
Height (mm):
220
Gross weight (kg):
32,9

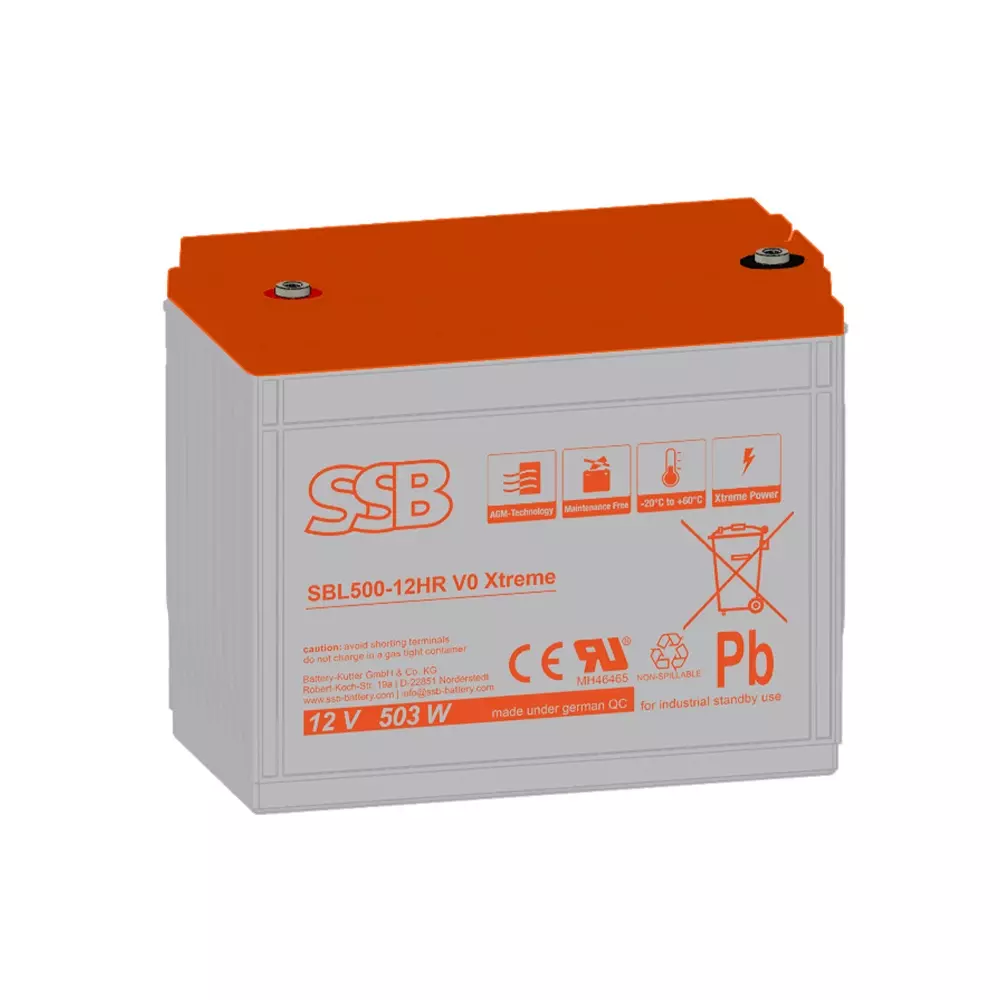

SSB Battery SBL500-12HR V0 Xtreme
AGM battery, 12 V 134 Ah (C10), High Rate Xtreme Series (high current capacity, 503 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 340 x 172 x 286.5 mm, M8 connector, weight: 40,0 kg
Item Number:
SSB2037878
Description:
AGM battery, 12 V 134 Ah (C10), High Rate Xtreme Series (high current capacity, 503 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 340 x 172 x 286.5 mm, M8 connector, weight: 40,0 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL500-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
134000
Length (mm):
340
Width / Diameter (mm):
172
Height (mm):
286,5
Gross weight (kg):
40,6

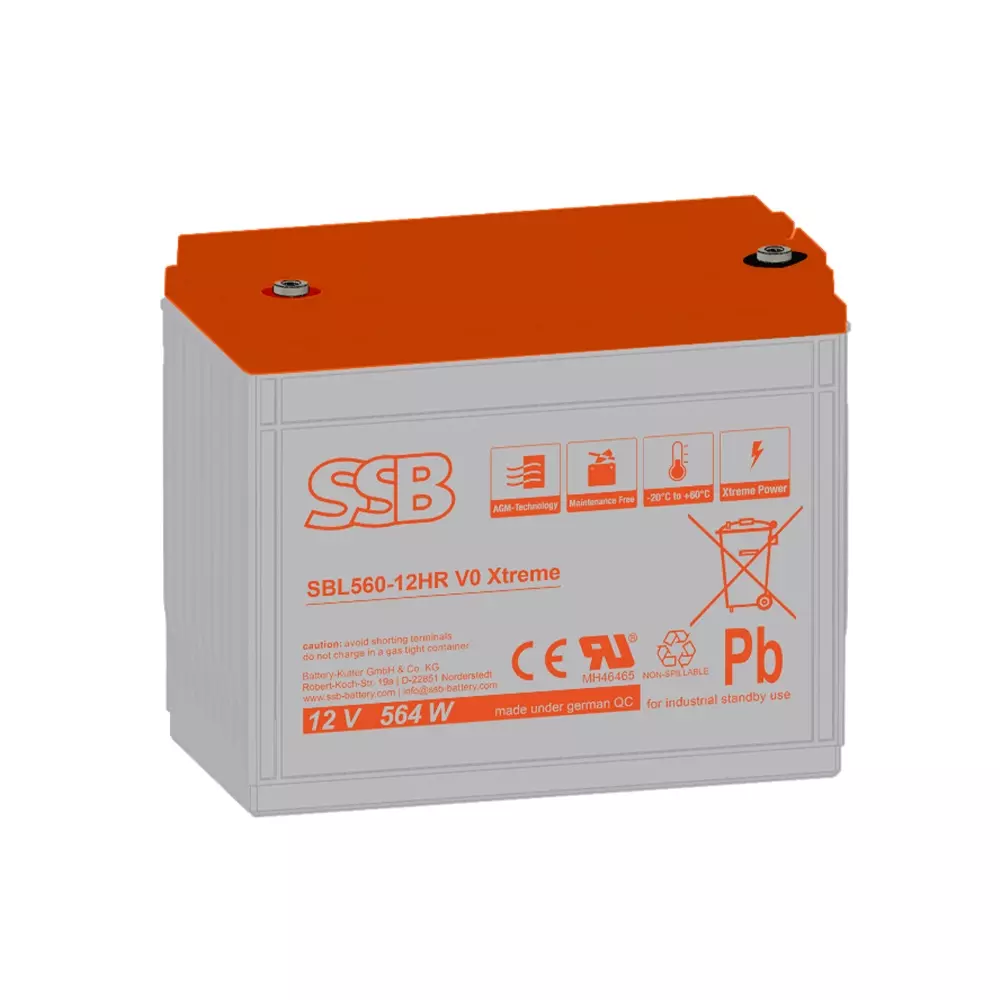

SSB Battery SBL560-12HR V0 Xtreme
AGM battery, 12 V 140 Ah (C10), High Rate Xtreme Series (high current capacity, 564 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 341 x 173 x 283 mm, M8 connector, weight: 41,0 kg
Item Number:
SSB2037879
Description:
AGM battery, 12 V 140 Ah (C10), High Rate Xtreme Series (high current capacity, 564 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 341 x 173 x 283 mm, M8 connector, weight: 41,0 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL560-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
140000
Length (mm):
341
Width / Diameter (mm):
173
Height (mm):
283
Gross weight (kg):
42,1

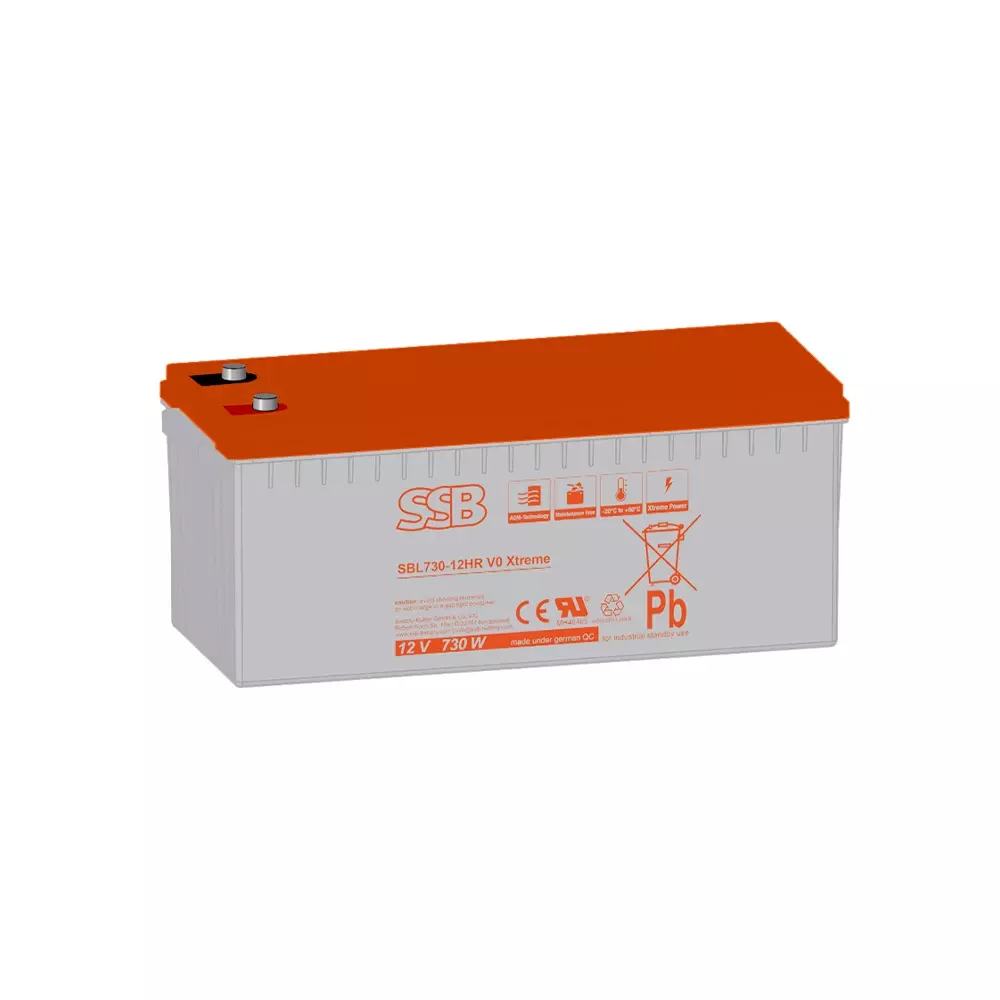

SSB Battery SBL730-12HR V0 Xtreme
AGM battery, 12 V 192 Ah (C10), High Rate Xtreme Series (high current capacity, 730 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 530 x 209 x 220 mm, M8 connector, weight: 57,0 kg
Item Number:
SSB2037900
Description:
AGM battery, 12 V 192 Ah (C10), High Rate Xtreme Series (high current capacity, 730 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 530 x 209 x 220 mm, M8 connector, weight: 57,0 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL730-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
192000
Length (mm):
530
Width / Diameter (mm):
209
Height (mm):
220
Gross weight (kg):
58

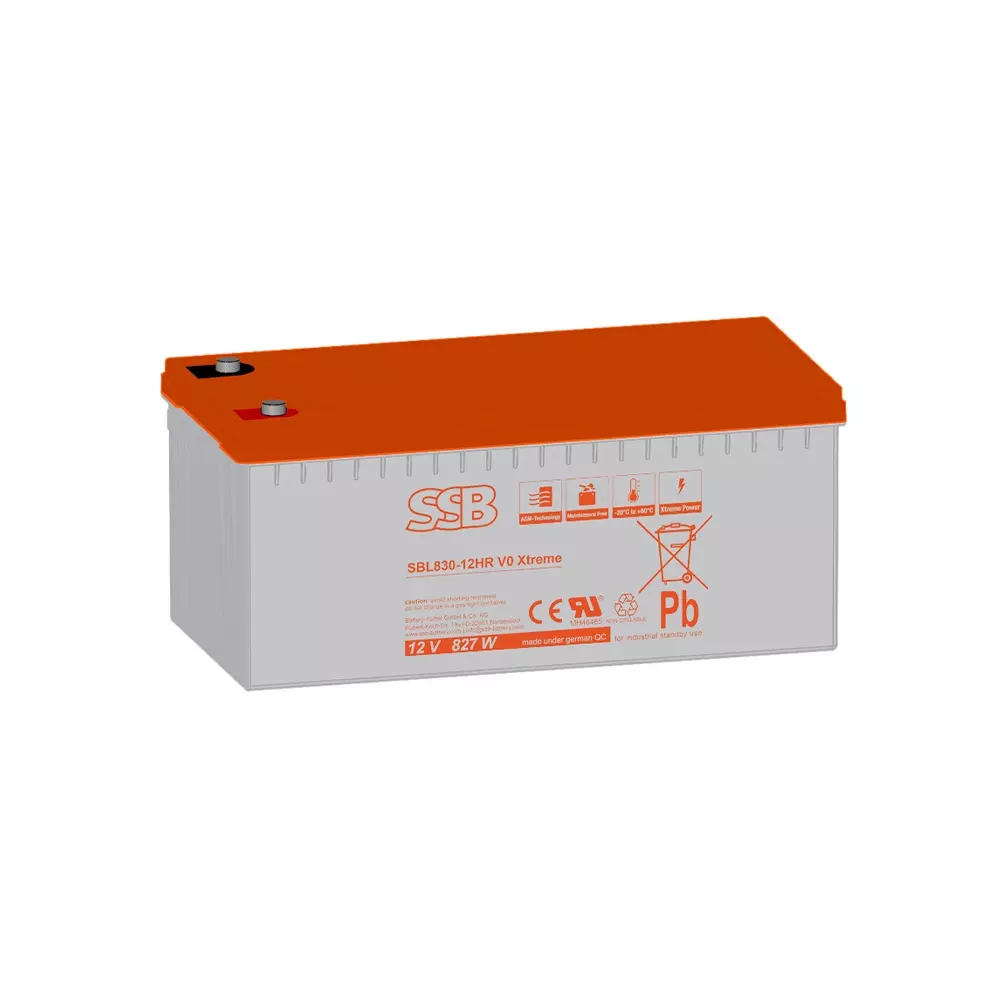

SSB Battery SBL830-12HR V0 Xtreme
AGM battery, 12 V 220 Ah (C10), High Rate Xtreme Series (high current capacity, 827 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 522 x 238 x 223 mm, M8 connector, weight: 67.5 kg
Item Number:
SSB2037901
Description:
AGM battery, 12 V 220 Ah (C10), High Rate Xtreme Series (high current capacity, 827 W/15 min., 1.6 V/Zelle) sealed, maintenance free, >12 years, measurements: 522 x 238 x 223 mm, M8 connector, weight: 67.5 kg
Manufacturer:
SSB Battery
Model description:
SSB Battery SBL830-12HR V0 Xtreme
Voltage (V):
12
Capacitance (mAh):
220000
Length (mm):
522
Width / Diameter (mm):
238
Height (mm):
223
Gross weight (kg):
68,5
